MMC-PN2K-25

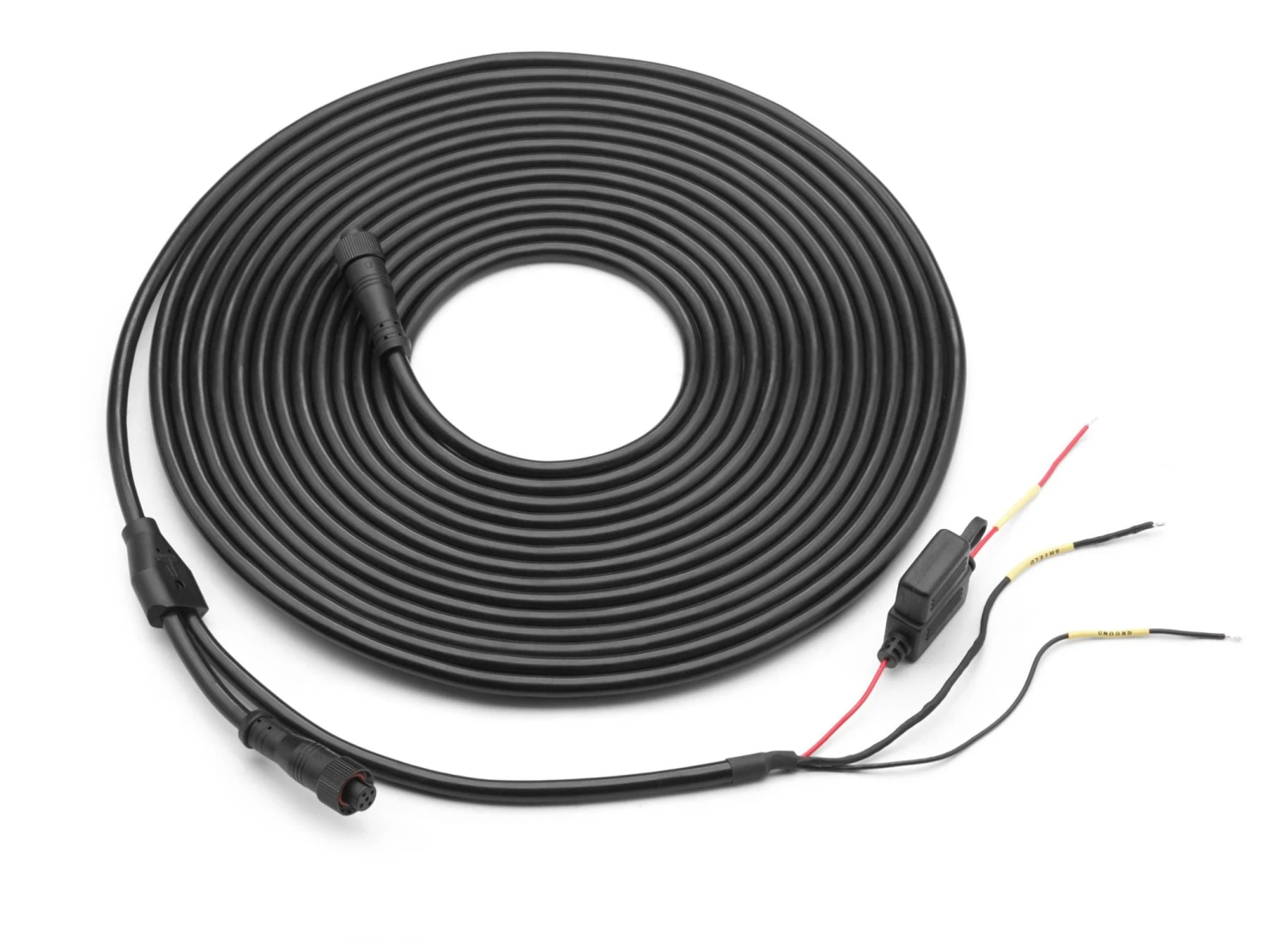

Powered Network Cable for connection of compatible NMEA 2000® MediaMaster® source units – 25 ft (7.62 m)

This powered network cable is designed to simulate an isolated, stand-alone NMEA 2000® network for the connection of a compatible MediaMaster® source unit (sold separately) with one MediaMaster® MMR-40 NMEA 2000® Network Controller (sold separately) or compatible MFD (Multi-Function Display).



Note: JL Audio® Powered Network Cables support a maximum of two NMEA 2000® devices. For systems with additional NMEA 2000® devices, a genuine NMEA 2000® network must be assembled, which does not support JL Audio® Powered Network Cables. Connection of MM100s (not MM100s-BE) requires MMC-DN2K-1 or MMC-DN2K-6 to adapt the Deutsch connector on the MM100s to a NMEA 2000® 5-pin Micro-C connector.

Need additional information on making MediaMaster® connections?
View the Help Center Article on MediaMaster Remote Compatibility.
